The Avive Portable Power Bank is an accessory you can use to extend the battery life of your Avive Connect AED. If you are using your Avive Connect AED in Low Power Mode, the Power Bank will extend its battery life up to 5 years. If you are using your Avive Connect AED in High Power Mode its battery will last approximately 1 year when using the Power Bank.
To set up your Avive Portable Power Bank, follow the steps below:
- First, fully charge both your Avive Connect AED and Power Bank.*
- Secondly, connect the USB-C charging cable on your Power Bank to your Avive Connect AED.

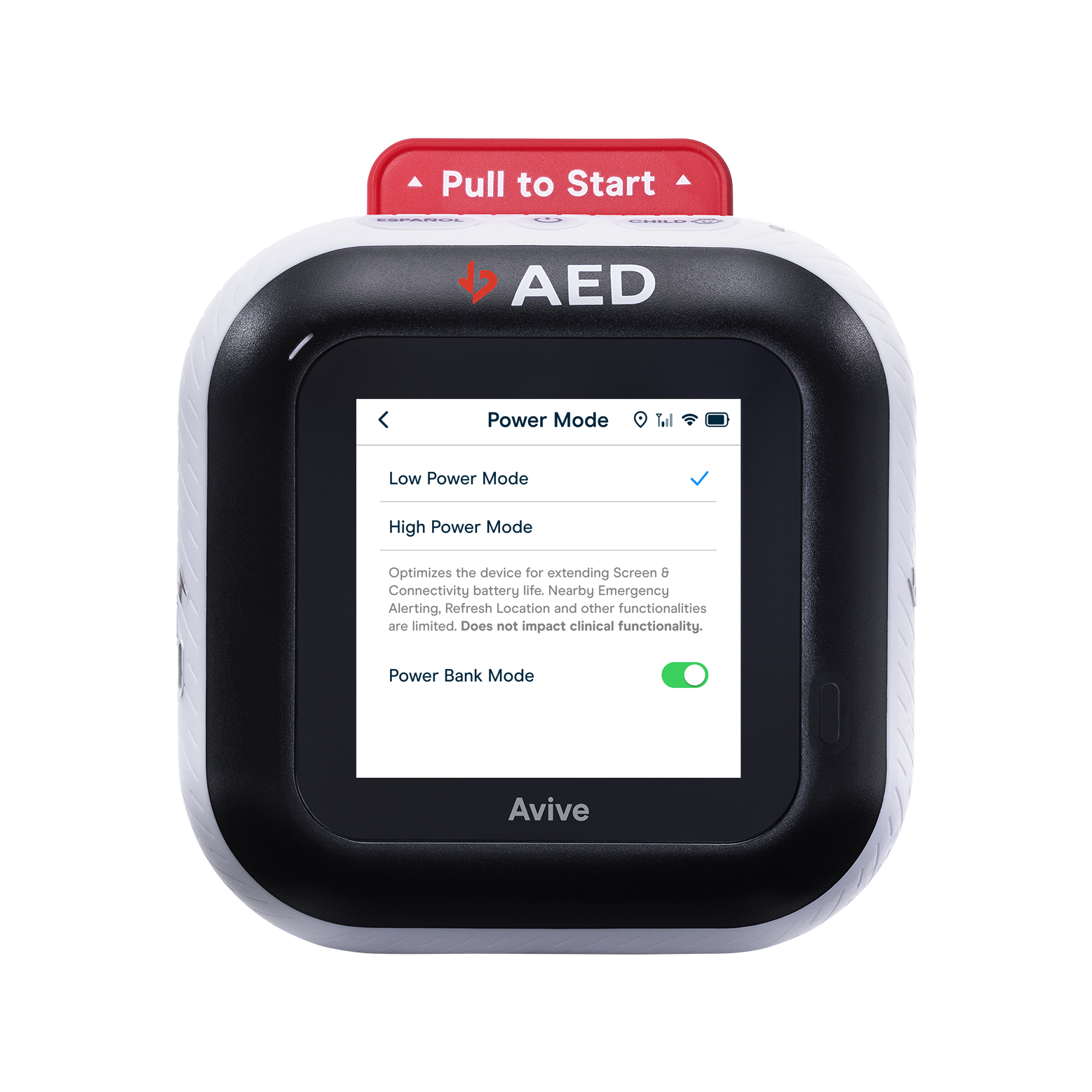

- Thirdly, turn on Power Bank Mode on your Avive Connect AED by navigating to Settings > Power Mode > toggle Power Bank Mode ON via the screen of your Avive Connect AED.
- NOTE: Your Avive Connect AED must be operating on Connectivity Software version 2.1 or higher to use Power Bank Mode.
When the battery of your Power Bank is depleted, REALConnect will let you know by displaying a Power Bank Depleted tag on your AEDs’ Detail page.
When it’s time to recharge your Power Bank:
Note, your Power Bank will take approximately 24 hours to fully charge. You can view the battery percentage by pressing the display button on the top left hand corner of your Power Bank.
- First, unplug the Power Bank cable from the USB-C port on the Power Bank.
- Second, connect the USB-C end of the same charger you use to charge your Avive Connect AED to the USB-C port on the Power Bank. Connect the other end of the cable to a wall adapter and plug your Power Bank into a wall outlet.
- Let charge until the Power Bank reaches 100% battery. You can check the battery percentage for your Power Bank by pressing the display button on the top left hand corner of your Power Bank.
- Once the Power Bank is fully charged, unplug the charging cable and reconnect the Power Bank Cable into the USB-C port on your Power Bank.
