Your Avive Connect AED has a unique dual battery system that ensures the AED’s lifesaving battery is not compromised during prolonged use of the Screen and Internet Connectivity features. You can keep track of your device’s AED Battery and Connectivity Battery levels remotely in REALConnect to ensure your device stays Emergency Ready, and receive notifications any time a battery level gets low.
If your device is showing up as Not Connected in REALConnect, click here to learn more.
Battery Statuses on REALConnect:
-
AED Battery Low: Your device’s lifesaving AED battery is low. Charge the device to ensure your device is Emergency Ready.
-
Connectivity Battery Depleting Soon: The battery that powers the Screen and Internet Connectivity services on your device is low, and the device should be charged to ensure the screen maintains power and the device stays connected to REALConnect. This is completely independent from the lifesaving AED Battery, and so long as the lifesaving AED Battery remains Good, the device will remain Emergency Ready.
- Connectivity Battery Depleted: The battery that powers the Screen and Internet Connectivity services on your device is depleted, and the device should be charged to regain screen function and re-connect with REALConnect. This is completely independent from the lifesaving AED Battery, and so long as the lifesaving AED Battery remains Good, the device will remain Emergency Ready.

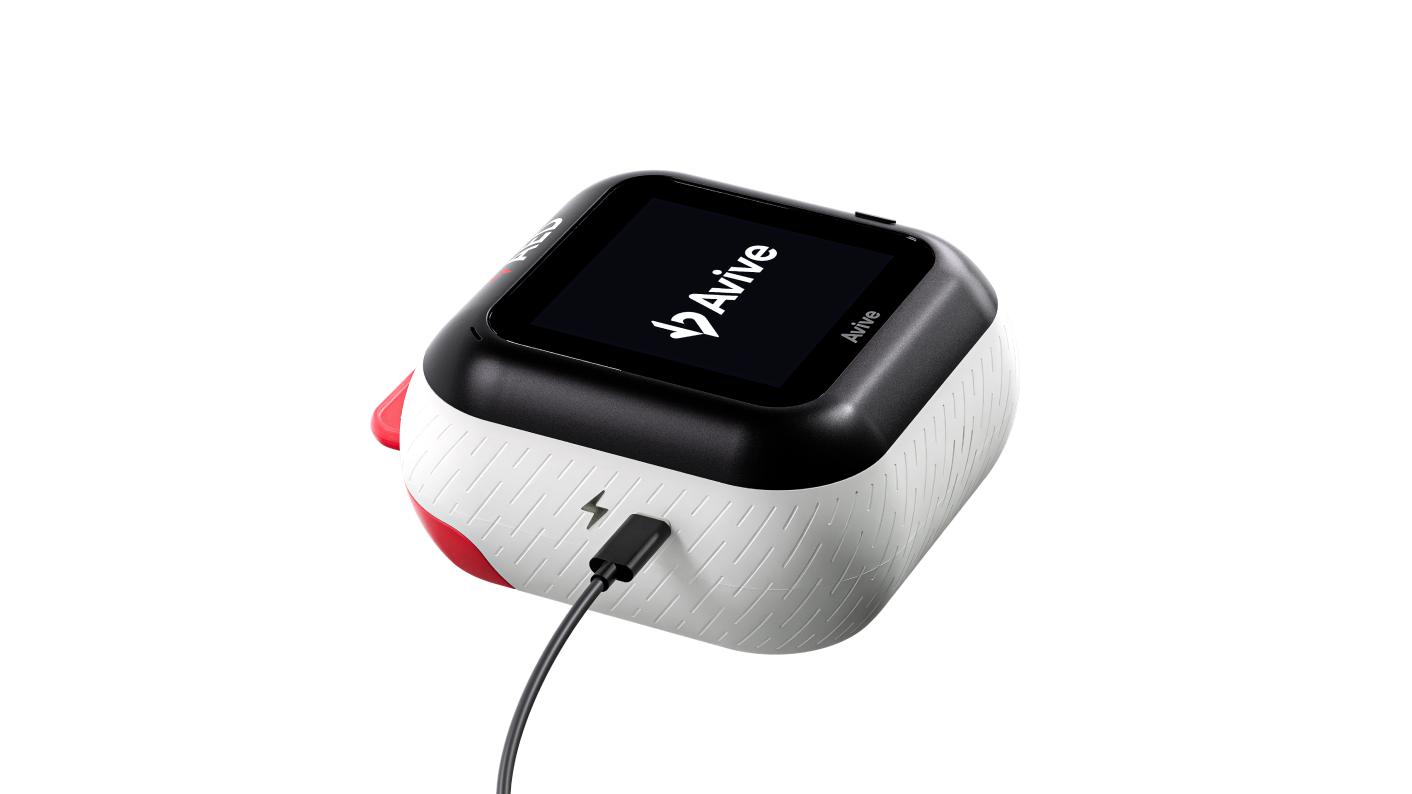

To charge your Avive Connect AED, simply plug the USB Charging Cable into your device.
Battery Statuses on your device:
If the Status Light on your Avive Connect AED is blinking green, that means that your Lifesaving AED Battery is Good and your device is ready to use!
- If the Status Light is blinking red, your lifesaving AED Battery is low and needs to be charged.
- If your Connectivity Battery is Depleting soon, you will see an exclamation mark notification on the center of your device’s home screen, and an Upcoming Issue in REALConnect.
- Finally, if your Connectivity Battery is Depleted, your device will appear as Not Connected in REALConnect and the screen will not have power. Plug your device into its charger to regain screen power.
NOTE: As long as your lifesaving AED Battery is Good, your AED will still operate in an emergency.
When plugged into the charger, you will see the Status Light on your device blink once every second while actively charging, or double blink twice every ~15 seconds once it is fully charged. You will also see a charging battery icon on the top right of your device’s screen while plugged in.
If you are not seeing any of these behaviors when your Avive Connect AED is plugged into the charger, please follow these steps:
1. To confirm if there is an issue with your device and/or its charging cable, please try the following items:
- Confirm that your wall outlet is working. Where possible, plug in another device and charging cable into the wall outlet to confirm the outlet you are using is working.
- Confirm you are using an Avive USB Charging Cable and Avive USB Power Adapter. You should see a green light on your wall adapter.
- If you have confirmed your wall outlet is working, but do not see the green light on your Avive USB Power Adapter, contact Avive Customer Support using one of the methods below.
- If you do not have another Avive USB Charging Cable and Avive USB Power Adapter, try a laptop or phone charging cable that has a USB-C connection.
2. Unplug your device.
3. Press the black Display Button on the front of your device to turn on the screen. If your screen is not powering on, please click here for troubleshooting instructions.
4. On the screen of your device, navigate to Your Device > Status > and note the Lifesaving AED Battery and Screen and Connectivity Battery levels.
5. Plug the device into a wall charger and confirm that the Lifesaving AED Battery and Screen and Connectivity Battery status now reads Charging, and that the battery icon in the top right corner of your device screen reflects the charging status.
6. If the device screen is not reflecting the charging status, navigate to Settings > Reboot System.
7. Repeat Step 5.
If your device is still not charging when plugged in after performing the steps above, please contact Avive Customer Support by emailing support@avive.life or calling 1 (800) 489 -4428.
