How do I replace the training pads in my Avive AED Training Cartridge?

Replacing the training pads in your Avive AED Training Cartridge is simple - just prepare your cartridge for the swap, and follow the steps below.

To prepare your cartridge for the pad swap:

• Remove the Avive AED Training Cartridge from the Avive Connect AED

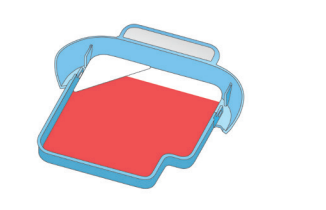

• Pull the blue Training Tray out of the Training Cartridge
• Remove the gray Training Tray lid.

Now, follow the steps below to replace your worn training pads!

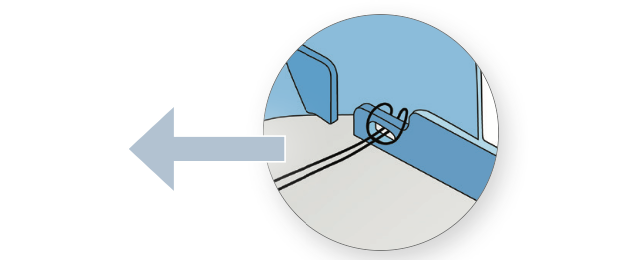

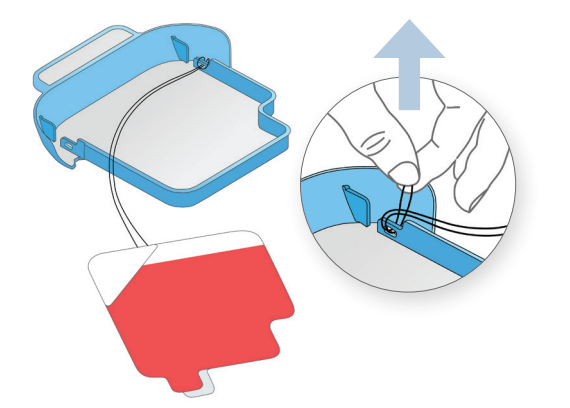

1. Loosen the Pad String - pull up on the small loop created by the black string until the loop grows in diameter enough to fit the training pads through.

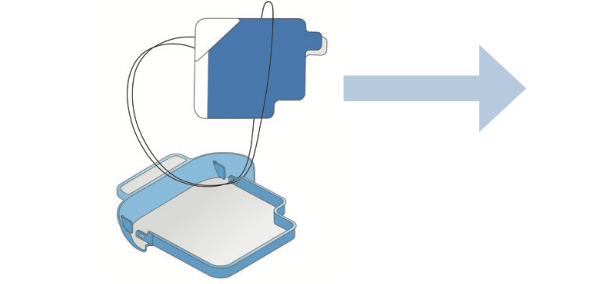

2. Remove the training pads - first, pass the training pads through the loop created in Step 1. Then, pull the black string completely out of the hole on the blue Training Tray and discard used training pads.

3.  Prepare the new training pads - get your new training pads and fold the red and blue pads down so that the artwork on the training pads faces the outside. Locate the center of the black string.

4. Install New Training Pads - pass the center of the black string through the hole on the upper right corner of the blue training tray and create a loop big enough to fit the training pads through.

5. Secure New Training Pads - pass the training pads through the loop created in step 4. Pull the black string on the training pads until the loop is tight on the blue training tray.

Finally, re-install your Avive AED Training Cartridge into the Avive Connect AED by placing the black string inside the blue training tray and placing the training tray inside the Pad Cartridge. Install the Training Cartridge on the Avive Connect AED.

For a downloadable version of these instructions, click here.
