How do I install a new Pad Cartridge?

To remove a Pad Cartridge from your device:

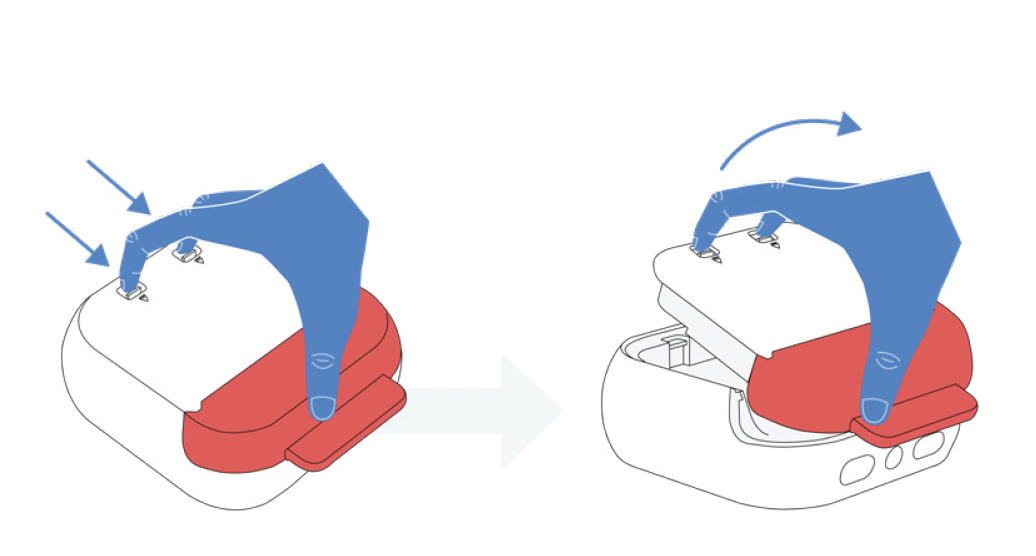

1. Firmly pull back and lift up both tabs on the back of the device to release the cartridge.

To install a new Pad Cartridge:

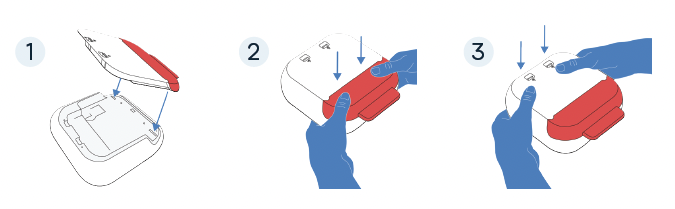

1. Install a new Pad Cartridge by first aligning the cartridge with the back of the AED. Push the cartridge firmly into the recess on the back of the AED.
2. Press down firmly on the red corners of the cartridge.
3. Press down firmly on the corners of the Pad Cartridge next to the two tabs.

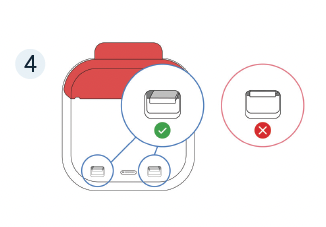

4. IMPORTANT: Make sure the cartridge is fully inserted around all sides of the AED by listening for and visually confirming that the two tabs on the back of the pad cartridge “click” into place.
